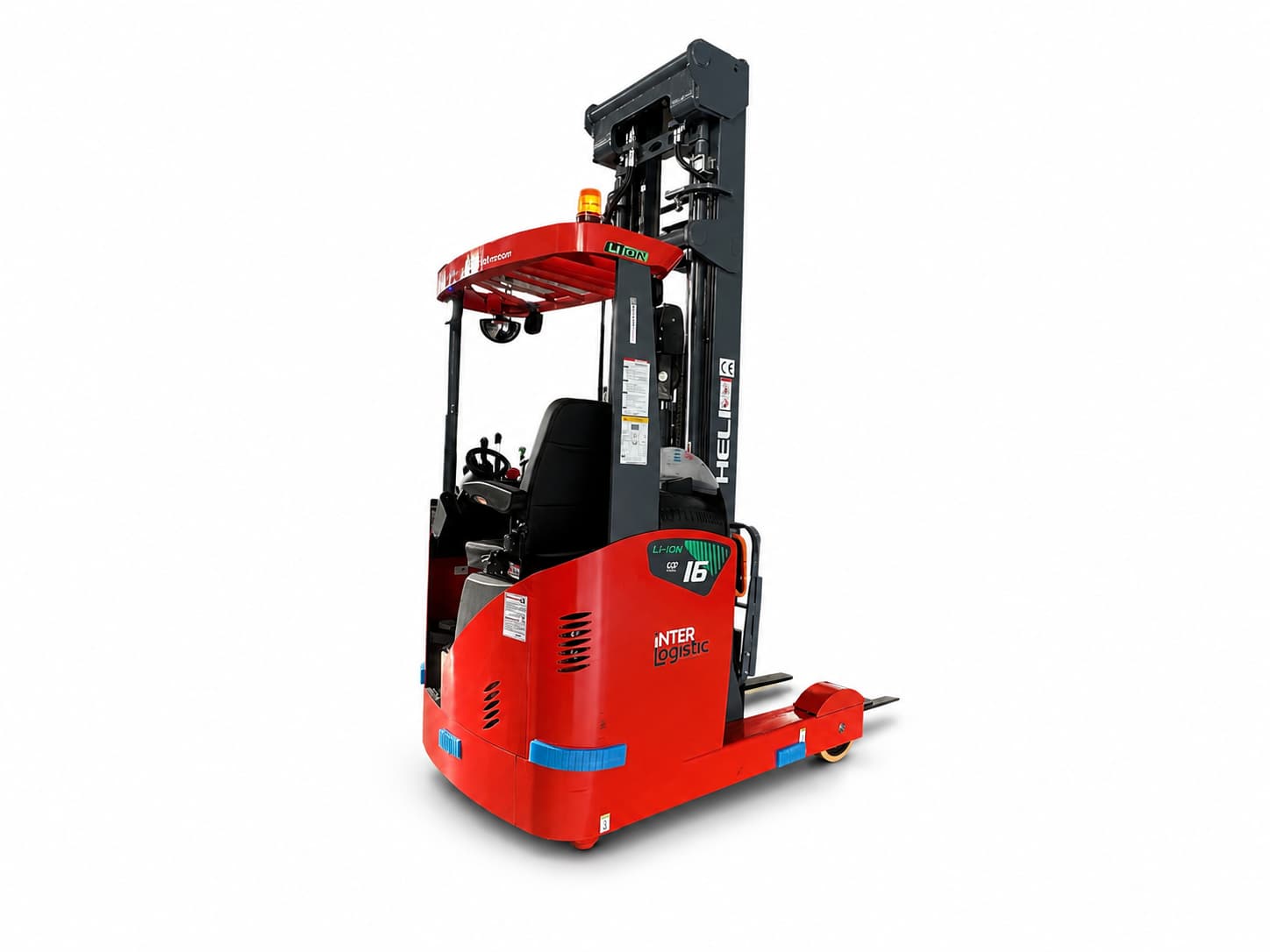

HELI CQD16
1,600 kg ride-on reach truck, designed to maximize logistics performance and precision in high-lift stacking within narrow aisles.
Description
The heli cqd16 electric reach truck is the ideal strategic tool for companies looking to raise efficiency, speed, and safety standards in their warehousing operations. With a 1,600 kg load capacity, this advanced reach truck is specifically developed to perform seamlessly in narrow aisles of distribution centers and logistics warehouses, thanks to its moving mast mechanism that allows operators to pick or position pallets with millimeter precision at height without moving the entire chassis.
Unlike traditional walkie models, its ride-on configuration provides the operator with a highly ergonomic and protected working position, guaranteeing superior travel speeds and drastically reducing fatigue during intensive shifts. Serving as a high-performance ride-on pallet lifter, this heavy-duty reach stacker incorporates alternating current (AC) motors and Electronic Power Steering (EPS), ensuring extremely smooth movements, absolute load control at great heights, and a notable optimization of energy consumption. This makes it an invaluable asset for any narrow aisle logistics framework requiring a reliable heli reach forklift.
This high-specification technical model is backed by the comprehensive support, factory warranty, and specialized consulting of interlogistic, the official HELI representative in Argentina. We guarantee corporate after-sales service, qualified technical assistance, and a permanent stock of genuine spare parts to safeguard the continuity and profitability of your investment.
Technical specifications
| Parameter | Value |
|---|---|
| Load capacity | 1600 kg |
| Max. lift height | 8500 mm |
| Load center | 600 mm |
| Total weight | 3460 kg |
| Overall dimensions | Altura máxima de elevación: hasta 8.500 mm (versiones Heavy Duty hasta 12.500 mm). Largo hasta respaldo de horquillas: 1.840 mm. Ancho total: 1.270 mm. Altura al techo protector: 2.215 mm. Desplazamiento retráctil de torre: 606 mm. Radio de giro mínimo: 1.689 mm. Pasillo mínimo (Ast): 2.760 mm con pallet 1000 × 1200 mm y 2.914 mm con pallet 1200 × 1200 mm. |
| Braking & safety | Freno electromagnético, dirección eléctrica (EPS), controlador ZAPI, sistema de reducción automática de velocidad, mástil de alta visibilidad, controles hidráulicos proporcionales, sistema de estabilidad para trabajo en altura y puesto de conducción ergonómico. |
| Driving type | Ride On |
| Minimum aisle width | Up to 3000 mm. |
